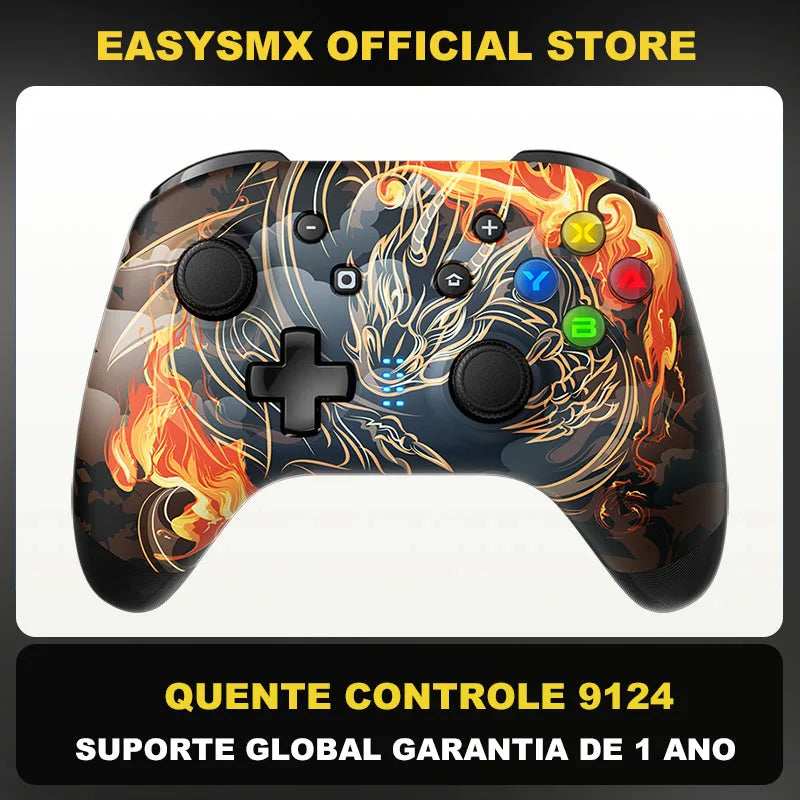

Wireless Gamepad Bluetooth Joystick

Purchase Options

1. IF you want to buy one control for nintendo switch, please choose P01
2. IF you want to buy one control for nintendo switch and pc/android tv/tv box, please choose P02
3. IF you want to buy one all mutil-platform control, please choose P03

【Multi-Platform Compatible】The gamepad is compatible with Nintendo switch switch lite/switch OLED, android phone/tablet/TV/TV Box, iOS iPhone/ iPad, PC Windows 11/10/8/7/XP, Steam

【Turbo Function and Motion Controls】The gamepad has the same turbo function and motion controls as the official controller. The built-in sensitive six-axis sensor supports motion control, which can greatly increase the player's gaming experience.

【Linear trigger】The gamepad uses a linear trigger button, which solves the dilemma that the trigger button of the Switch controller on the PC side has no linear function, and is perfectly suitable for the Switch and PC side.

【Long battery life】The gamepad has a built-in standard 600mA lithium battery, which can actually play for more than 15 hours on a single charge without the lights on, and more than 10 hours with the lights on.

【programming back key】The gamepad with 4 programming back buttons, you can set one-button combo, one-button big move to help players easily become masters.

【Anti-slip design】The gamepad grip and joystick mushroom head are all laser engraved with the same technology as the original Xbox controller. The gamepad feels extremely delicate and comfortable, and the hands will not sweat and slip for a long time.

Mode and Connection

Connect to Switch
1)For the first connection, press X + HOME while in Power-off state; If not the first connection, in Power-on state, shortly press HOME to connect automatically; Switch Bluetooth connection supports Home key to wake up the host.
2) Turn on Switch, select "controller" and then select "Change Grip/Order", the controller will automatically identify and pair the Switch host, after it's successfully connected, the corresponding LED light will keep on.

Connect to cellphone
1) Android mode: If for first connection, press B+HOME; if not the first connection, just short press the HOME key to start up. In Bluetooth pairing mode, LED1 flashes, means it's successfully connected.LED1 keep on; the device name is Gamepad.
2) IOS mode: If for first connection, A + HOME; if not the first connection, just short press HOME to turn on. Enter Bluetooth pairing mode, LED2 lights flash, after it's successfully connected, the corresponding LED light will keep on; the device name is Xbox Wireless Controller

Connect to PC
1)Connect the controller to PC through USB data cable. After successfully connected, the indicator lights on, default Xinput mode, Led1 + Led4 light is on, long press Turbo to switch to Dinput mode, with a vibration, the indicator lights LED2 and LED3 keep solid on, then it means switch mode successfully.
2)Connect the controller to PC through USB receiver. Insert the receiver into the USB port of the computer, Press button at side of the USB receiver, the driver name is "Xbox 360 Controller", press Y+HOME; the controller starts pairing with the receiver. LED4 will remain on, meaning the connection is successful

Change Button Layout

If you are not comfortable with the Nintendo Switch button layout B, A,Y, X when playing on your PC and want to change to the Xbox button layout A, B, X, Y. Just need to scan the above QR code in user manual with your mobile phone to download the “KeyLinker” APP. Through this APP, you can change the keys of the controller, adjust the vibration, set the turbo, macro definition, and other functions.
(Note: The settings made in the APP are also valid on other platform devices. If you want to restore the initial settings of the controller, you need to select "Restore Factory Settings" in the APP)

Packing list

1 x 9124 Gaming Controller
1 x Charging Cable
1 x User Manual
1 x USB Receiver (Buyer Choose)
1 x Phone Holder (Buyer Choose)
